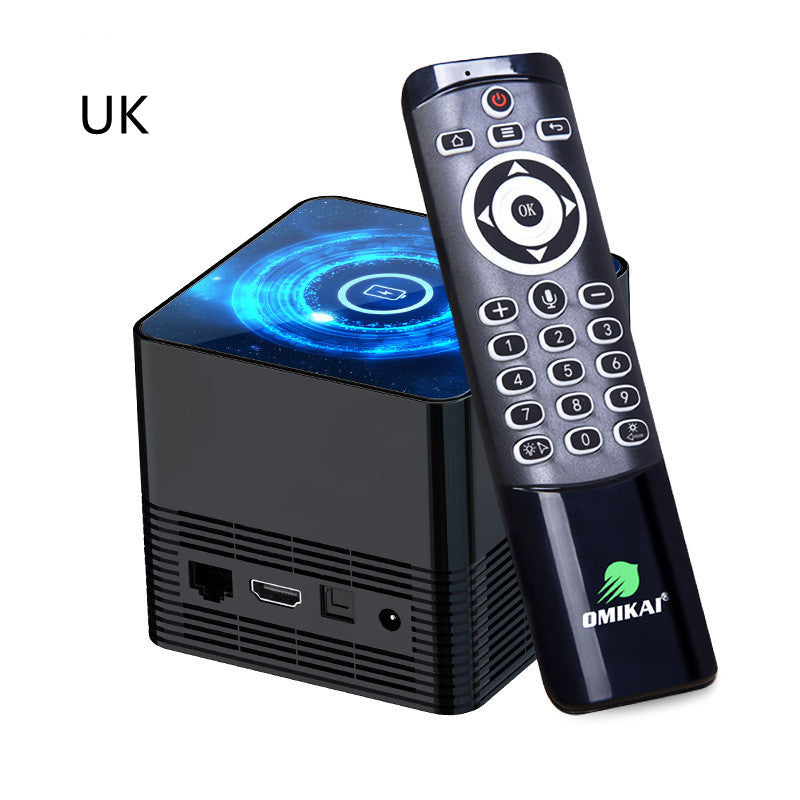

Android 10 4G32G 6K Smart Network Set-top Box

Android OS

Android 10.0 OS

CPU

Quad-Core Cortex-A53

GPU

G31 MP2  Supports OpenGL ES 3.2/2.0/1.0,Vulkan 1.1,OpenCL 2.0

RAM

4GB DDR3

Memory size

32GB EMMC

Language

Chinese,English...Multi-Language support

Storage Extension

Support MicroSD(TF) ,Up to 128GB

WIFI

IEEE 802.11a/b/g/n/ac,  2.4G/5.8G/BT5.0

BT

Supports BT 5.0,BLE,and ANT+and backward compatibility with BT1.X and BT 2.X+Enhanced Data Rate

Ethernet

Standard 10M/100M/1000M  RJ-45

Media Format

Support Decoder Format

VP9-10 Profile-2 up to 6K@30fps
H.265 HEVC MP-10@L5.1 up to  6K@30fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
H.264 MVC up to 1080P @60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file
HD MPEG1/2/4,H.264, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10

Support Media Format

Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg

Support Music Format

MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE

Support Photo Format

HD JPEG/BMP/GIF/PNG/TIFF

HDR

Supports 10-bit processing path for HDR video

USB Host

2*USB

Card Reader

TF cards

HDD file System

FAT16/FAT32/NTFS

Support Subtitle

SRT/SMI/SUB/SSA/IDX+USB

HD Video Output

SD/HD max. 6K  pixel

OSD Type of Languages

English/French/German/Spanish/Italian/ etc multilateral languages

LAN

Ethernet:10/100/1000M standard RJ-45

2.4G Voice Flying Mouse

Built in 2.4G voice flying mouse

Mouse/ Keyboard

Support mouse and keyboard via USB;Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

HDMI

HDMI 2.0 up to 6K Output with HDR, CEC and HDCP 2,2, 6K@30fps max
resolution output

4K2K HD Decoding

6K H.265 Hardware Video Decode and 6K Output

3D

Hardward 3D graphics acceleration

AV

Support

Wireless Charging Specifications

Wireless charging standard

Qi-BPP/Samsung /Apple rapid fast Charging

Input Power

DC12V/1.5A

Input Voltage

12V

Power Interface

Micro-A

Maximum Output

10W

Charging Efficiency

>75%

Static Power

< 0.2W@5V,< 0.3W@15V

Charging Height

Coil to Coil 3-8mm

Charging Area

10mm*10mm

Supports Rechargeable Devices

1 piece

Product Certification

CE/FCC/Qi-BPP

Coil Type

MP-A11

Number of Coils

1piece

System Working Temperature

0℃~+45℃

System storage temperature

-40℃~+85℃

Protection Function

Overcurrent protection, overvoltage protection, undervoltage protection, overpower protection, overtemperature protection, foreign matter detection, DPL, etc

Interface

1*HDMI 2.0 with CEC

HDMI 2.0 up to 6K Output with HDR, CEC and HDCP 2,2, 6K@30fps max
resolution output

1*Mirco SD Card (TF)

TF cards (up to 32GB)

2*USB HOST

2*USB ,support USB DISK and USB HDD

1*Optical

Optical output

1*Silent fan

Silent fan cooling

1*RJ45

Ethernet:10/100M/1000M, standard RJ-45

1*Wireless Charger

Wireless charging

1*Colorful Breathing Lamp

Colorful breathing lamp display

1*Power Input

12V3A
